YSB150 Digger Hydraulic Jack Hammer For Large Excavator

  • 1
  • 2

Brand Name : FANGBANG

Model Number : YSB150

Place of Origin : GUANGZHOU

MOQ : negotiable

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000 Piece/Pieces per Week

Delivery Time : 5-8 work days

Packaging Details : standard packing

impact frequebcy : 180-200bpm

Suitable Excavator(ton) : 20-26 ton

Chisel Diameter : 150mm

Name : jack hammer digger

weight : 985KG

Hydraulic flow range : 130-180 L/min

Contact Now

YSB150 jack hammer digger used hydraulic hammer for large excavator

What Does An Excavator Hydraulic Breaker Do?

Your excavator hydraulic breaker is mounted on an excavator in place of the excavator digger bucket. It runs on hydraulic power. It can then be used to break stone materials in mining areas and construction zones. You’ll, however, find them more frequently in road construction areas.

The hydraulic breaker strikes the stone element with force using its hardened chisel. It will strike stone elements and break them down until they are broken into manageable sizes.

In other words:

The hydraulic breaker is a robust mechanical device that can be beneficial if used correctly.

Product model and relevant data

Specname Unit YSBT135 YSB135A YSB140 YSB140A YSB150 YSB150A
Body weight kg 850 846 920 956 985 1092
Total weight kg 1658/1825/1898 1688/1868/1918 1767/2052/2004 1805/2090/2042 1692 2218/2380/2457
size mm 2423*5008*1202 2427*500*1202 2480*590*1355 2480*590*1355 2456*5959*1288 2640*590*1343
2900*560*710 2656*560*710 2866*560*710 2866*560*710 2879*600*760
2847*560*710 2646*560*710 2793*560*710 2793*560*710 3002*640*760
Operating pressure Kg/cm² 160-180 160-180 160-180 160-180 180-200 180-200
Hydraulic flow range L/min 130-150 145-180 120-180 120-180 130-180 150-190
Diameter of house inch 1 1 1 1 1 1
Diameter of tool mm 135 135 140 140 150 155
Impact frequebcy bpm 400-800 700-1200 360-460 350-500 350-500 350-700
Suitable carrier ton 18-26 18-26 18-26 18-26 20-26 27-35

Product application range

Mining: Breaking ore rocks, Second time crushing, Screen crushing
Metallurgy: Steel ladle and slag cleaning, Fumace dismantling, Equipment foundation removal
Public road: Highway repair, Cement pavement broken, Foundation excavation
Railway: Mountain and tunnel excavation, Road and bridge demolition, Subgrade compaction
Building: Demolition of old buildings, Broken reinforced concrete
Ship repairing and Construction: Removing clam and rust
Others: Breaking ice, Breaking frozen soils, Sand mold Vibration
Our Advantages
1) Applicable for different brands of excavators, simple& convenient &comfortable operation, easy maintenance
2) High Quality & high precision, high stability &high durability.
3) Low rate of chisel breakage and high working efficiency
4) Wear-resistant and super heat treatment technology
5) Low noise, saving energy and protecting environment
6) Powerful Hydraulic System Increased the Impact of Nitrogen
7) ISO certified by local Authority


Product Tags:

Digger Hydraulic Jack Hammer



YSB150 Hydraulic Jack Hammer


Quality YSB150 Digger Hydraulic Jack Hammer For Large Excavator wholesale

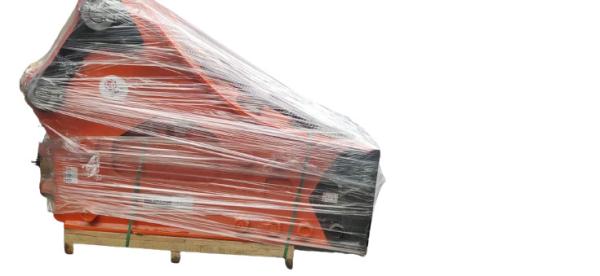

YSB150 Digger Hydraulic Jack Hammer For Large Excavator Images
